HI
i have blank HFM low batterie
i have read eprom ECM EDC17C42 and use Renault ecu tool to have ISK code
i obtain 12 digit code so ISK code 32
to learn HFM need this ISK code 32 digits
can any one help me to have this ISK code
I solved the problem with my car that had been troubling me for the past few days.
I faced issues with the distance control for ACC, a non-functional cruise control (ACC), and the start/stop system. Based on diagnostic errors and information from various forums, it seemed the problem was related to the battery, recoding, or similar issues. This caught my attention because my battery had been disconnected for some time, and I thought I was on the right track – but that wasn’t the case.
I checked all the connections (plugs) to ensure they were properly connected, and everything appeared fine. A few days later, I decided to remove the front bumper and trace the wires leading to the distance control for ACC. At first glance, everything looked fine, but after removing the wire insulation, I discovered that one wire was broken. Once I soldered it and reassembled everything, I started the car and ran a diagnostic. All errors disappeared, except for two unrelated ones.
What I want to emphasize is that diagnostic tools and most advice from forums and portals pointed to complex solutions like recoding or replacing parts, whereas, in my case, the problem was very simple – a broken wire.
Code:
*Address 01: Engine (J623-CRMB)
4709 - No Communications with Cruise Control (Front) Distance Sensor
U0235 00 [047] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Mileage: 248810 km
Date: 2025.01.18
Time: 22:52:30
....
....
....
*Address 03: ABS Brakes (J104)
8192 - Databus
U1121 00 [009] - Missing Message
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 53
Date: 2025.01.18
Time: 22:52:31
*ddress 17: Instruments (J285)
16777028 - Function Restricted due to Interrupted Communications
U1110 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 53
Mileage: 248810 km
Date: 2025.01.18
Time: 22:52:33
16776960 - Databus
U1121 00 [009] - Missing Message
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 11
Reset counter: 53
Mileage: 248810 km
Date: 2025.01.18
Time: 22:52:30
16776961 - Databus
U1121 00 [009] - Missing Message
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 11
Reset counter: 53
Mileage: 248810 km
Date: 2025.01.18
Time: 22:52:30
*Address 09: Cent. Elect. (J519)
6410 - Bulb for Rear Right Side Turn Signal
B12D1 15 [009] - Open or Short to Plus
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 53
Mileage: 248824 km
Date: 2025.01.19
Time: 01:20:33
Terminal 15 status: OFF
Terminal 50 status: OFF
CAN-Bus_aktiv: On
Status Bremslichtschalter (HW): OFF
Status Bremslichtschalter (CAN): OFF
OFF: Not operated
Position lamps: Not operated
Automatic high beam assist: operated
Low beam: Not operated
Parking light left: Not operated
Parking light right: Not operated
last_wakeup: no cause for fault protection
Voltage: 12.2 V
Outside temperature: 5.0 °C
*Address 19: CAN Gateway (J533)
131671 - No Communications with Cruise Control (Front) Distance Sensor
U0235 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 53
Mileage: 248810 km
Date: 2025.01.18
Time: 22:52:31
Terminal 30 power supply: 11.7 V
Terminal 15: On
0769 - Analog Measuring Input
C1155 31 [009] - No Signal
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 53
Mileage: 248810 km
Date: 2025.01.18
Time: 22:52:31
Terminal 30 power supply: 11.8 V
Terminal 15: On
*Address 5F: Information Electr. (J794)
7173 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 53
Mileage: 248810 km
Date: 2025.01.18
Time: 22:52:33
Voltage terminal 30: 11.9 V
BAP-BAP_Function_ID: 02
On the instrument cluster, it shows an error for the front position light, even though the light works. I suspect the issue is with the quality of the bulb because I’ve previously encountered cases where a cheap bulb works but causes an error. When I use a higher-quality bulb, the error disappears. Interestingly, this error appears only on the instrument cluster, not in the diagnostics. However, the diagnostics show an error for the turn signal, which is also working, and I don’t know why it doesn’t appear on the instrument cluster. In summary, all lights and signals are functioning, but these two errors remain.
Code:
Address 09: Cent. Elect.
6410 - Bulb for Rear Right Side Turn Signal
B12D1 15 [009] - Open or Short to Plus
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 54
Mileage: 248830 km
Date: 2025.01.20
Time: 05:38:31
Terminal 15 status: On
Terminal 50 status: OFF
CAN-Bus_aktiv: On
Status Bremslichtschalter (HW): OFF
Status Bremslichtschalter (CAN): OFF
OFF: Not operated
Position lamps: Not operated
Automatic high beam assist: operated
Low beam: Not operated
Parking light left: Not operated
Parking light right: Not operated
last_wakeup: no cause for fault protection
Voltage: 12.0 V
Outside temperature: 4.5 °C
Address 19: CAN Gateway
0769 - Analog Measuring Input
C1155 31 [009] - No Signal
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 54
Mileage: 248830 km
Date: 2025.01.20
Time: 05:38:29
AUDI A3 2020 (MIB3) TRAFFIC SIGN FECS (SWAP) - WHO CAN?
i have mib3 audi 2020 and need activate traffic sign i activate all things by long coding but still not working it has camera lane assist and camera that recognize the traffic sign but as i see it needs activation of FECS to make it work/.
hey, can any of you look over the stage 2 that was done by someone else. i have made all the changes myself but the car is still slow from 0-100 the car takes about 9 seconds
I am having a strange issue with 2016 XC60 smart fob.
The customer lost the key and bought a new key from a local dealer. I programmed it to the car with Xhorse Key tool plus. However, after the programming, we discovered that the keyless function does not work on the car. It opens and closes the doors and trunk, but we need to put it into the slot in order to start the vehicle. The keyless entry buttons on the doors are not working either. Per customer, they were working and he did not have to put the key into he slot to start the car. We called the dealer to verify that the key is the correct one and they confirmed.
Has somebody experienced this issue and how to resolve it?
Thank you in advance
P.S. When programing the key, the tool asks whether the key stuck in the slot or not, it was not, but when the key is removed the tool will fail to program the key. It has to be in the slot.
hello guys
i have audi q7 2012-2013 with bad elv
i bought another used elv same part number but the processor its different. the original one is 1L59W AND THE DONOR IT'S 0L01Y AND THE DUMP SIZE IT'S DIFFERENT
can i clone it just to write the backup from the original one to the donor one? or i need to transfer just the immo at the donor dump?
Looking for a dump from Ford Focus MK3 G1ET-14B321-HC. brought to the cleaning with the native dump the block does not even communicate. Poured from the block with other letters at the end of the block began to communicate but with errors in the configuration. Actually looking for a file in any state crash\ not crash. Or maybe someone can tell me what to correct in the native that would come out on the link
The problem is i went for replace battery, but after change car wont start, its like when u turn ignition on dash is still black for 2 seconds before it turns on, we got no engine light check when putting ignition on, no start or crank and no communcation with engine ecu, ive seen that blinkers dont work also, ive strippee entire wiring loom up at engine ecu, but found nothing, what should my next move be?
All fuses and relays are checked
I only have 2 errors in DTC
In cluster
CAN communcation signal missing
Abs module we got dtc10000 injection multiplex emmision missing
Hello, can somone delete two dtc for me?
Car: Renault megane 1.6 16v
ECU: Sagem S3000
DTCs to be removed: DF119 and DF080 (in generic P0340 and P0010).
I'm ready to pay, thx!
Im trying to flash FW in the headunit, and ive got a error when comes at 100%. Im using DTS monaco + enet cable , with DOIP configurated.
Log:
[21:42052] STAT: An internal error occurred in the MVCI diagnostic Server. See vendor specific code for details.; DYN: Signature Check Failed ErrorCode: eRT_INTERNAL_ERROR ( 0x0000D043 )

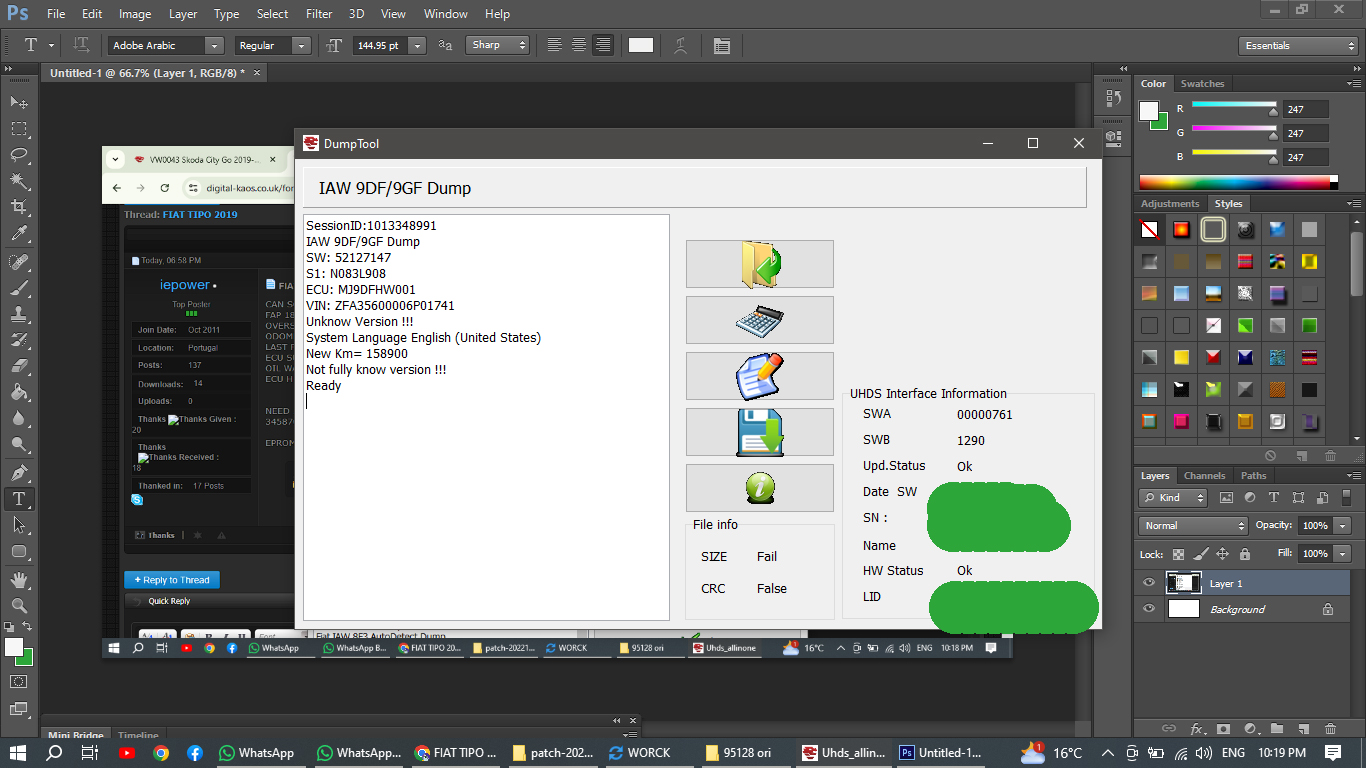

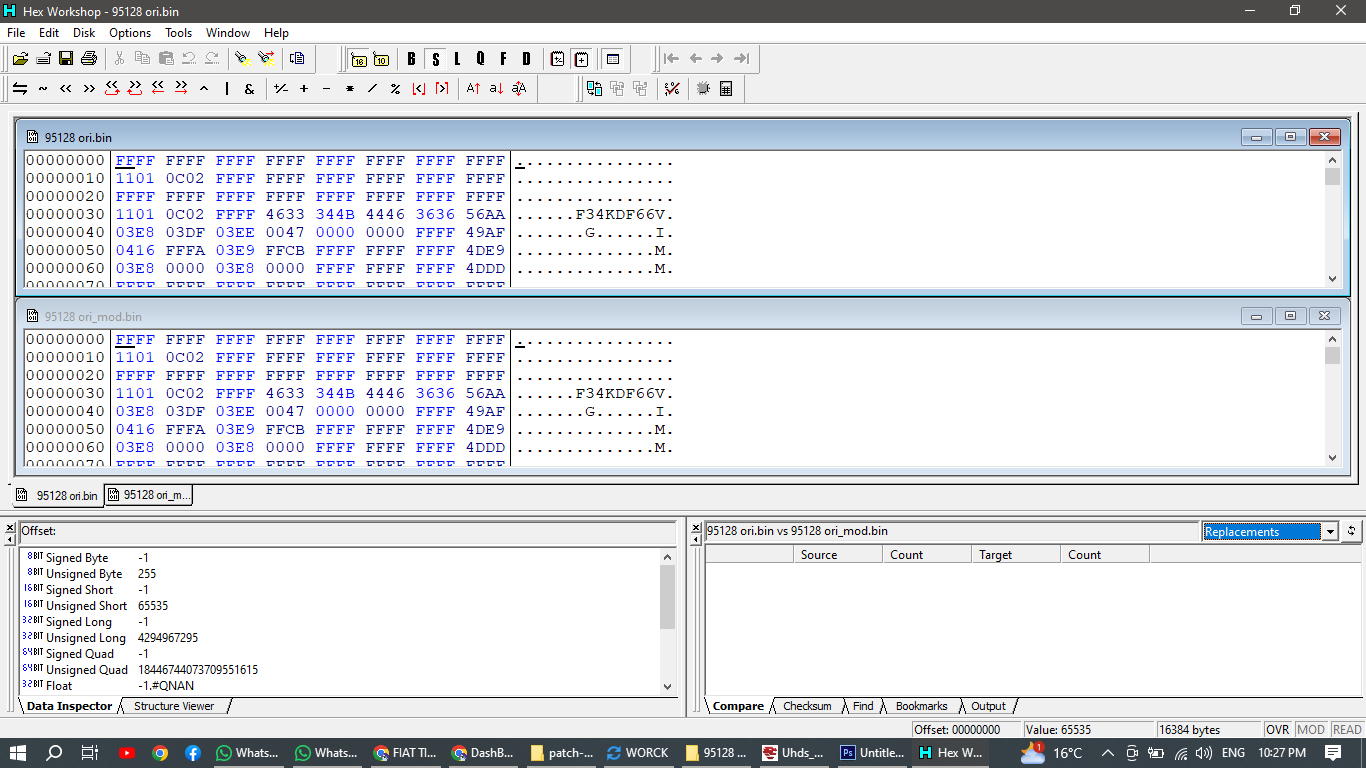

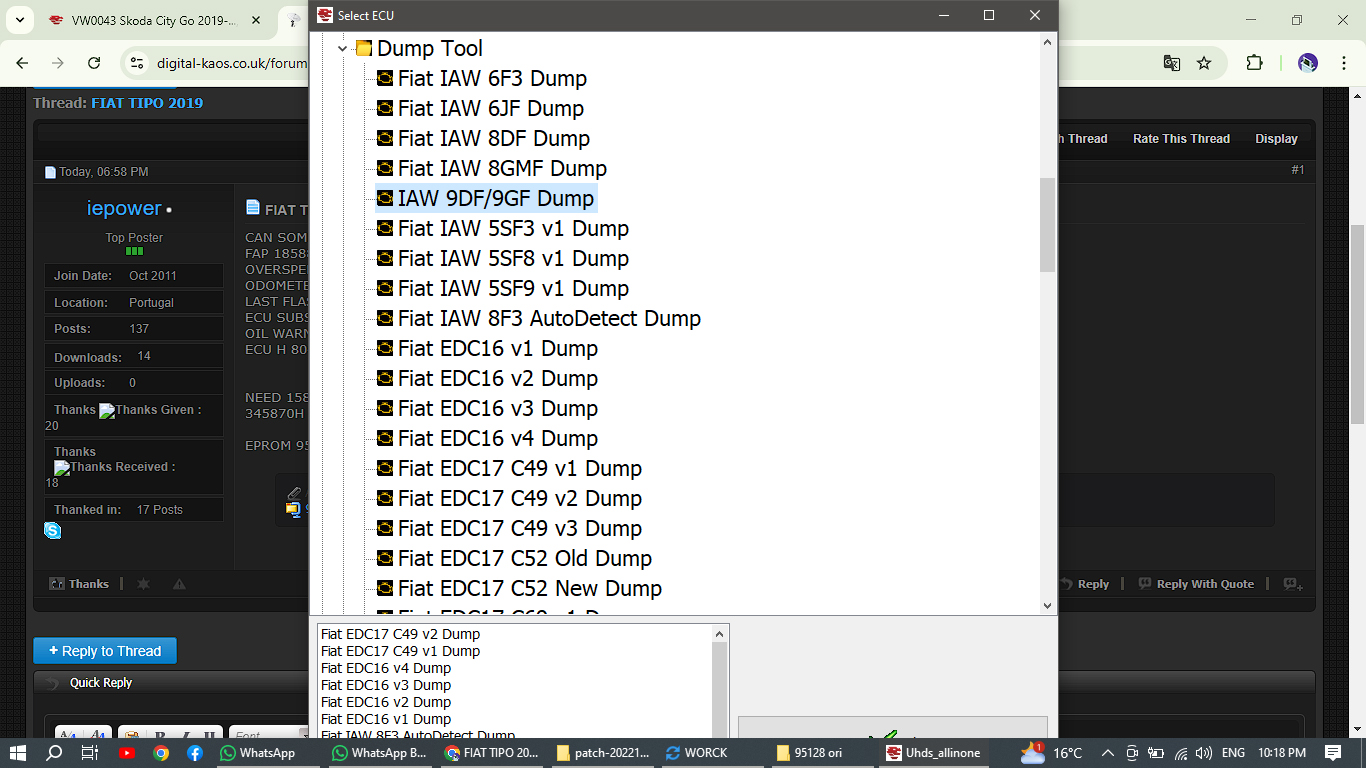

y friend I have smoke and also works on odometer adjustment license for Fiat group But when modifying the kilometers, no difference appears in the file. See the attached files. Can anyone help me with this?? CAN SOMEONE HELP PLEASE ECU MM 9DF FAP 185888.08 KM NEED 158900KM EPROM 95128https://a.top4top.io/p_3308a72os2.jpg
Guys, I have a 2019 Metris (Vito) I put filter between dash <> ezs change mileage dp4 and cluster shows 0km. Tried edit eeprom with iobd.io but same happed.
Hi all ECU HERO Software
Has anybody tried this software?
Also they say only works with OBDX Pro cable
anyone got it to work with different J2534 cable?
BR
Can someone help me to unlock this file picked from an Original ecu with that I am trying to clone inside the new (used Ecu)
ID of Old Volvo XC60
.................
..............
..................
31312486.........
31432229 AB
31355675 AA
31452849AA.
.31392380 AA
Y413_AUT_MP................
that I am trying to write into this other used ECU
ID of New Volvo XC60 car
.................
..............
..................
31312486.........
31432772 AA
31405743 AB
32139503AA.
.31392380 AA
Y283_Y352_285_286_M_MP_190h
I can read/write each of the ecu with its same file
but when I try to clone the Old file into the New ECU I am asked to UNLOCK the ecu, what I have successfully done before
I use Ecuhelp KT200II tool
Here attached is the dump that I am trying to write into the new ECU.
Hello,
Looking for ori file for Volvo EDC16C31 380233 because car is without DPF and smokes alot and no any DTC code
or someone can check that DPF is off propely in this file
Thanks.
052] STAT: An internal error occurred in the MVCI diagnostic Server. See vendor specific code for details.; DYN: Signature Check Failed ErrorCode: eRT_INTERNAL_ERROR ( 0x0000D043 )![[Image: p_3308a72os2.jpg]](https://a.top4top.io/p_3308a72os2.jpg)
![[Image: p_33087huse1.jpg]](https://l.top4top.io/p_33087huse1.jpg)
![[Image: p_330882jps1.jpg]](https://g.top4top.io/p_330882jps1.jpg)
